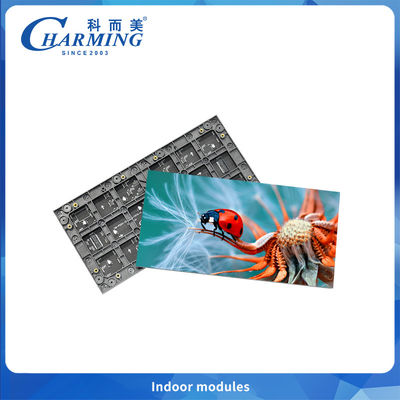

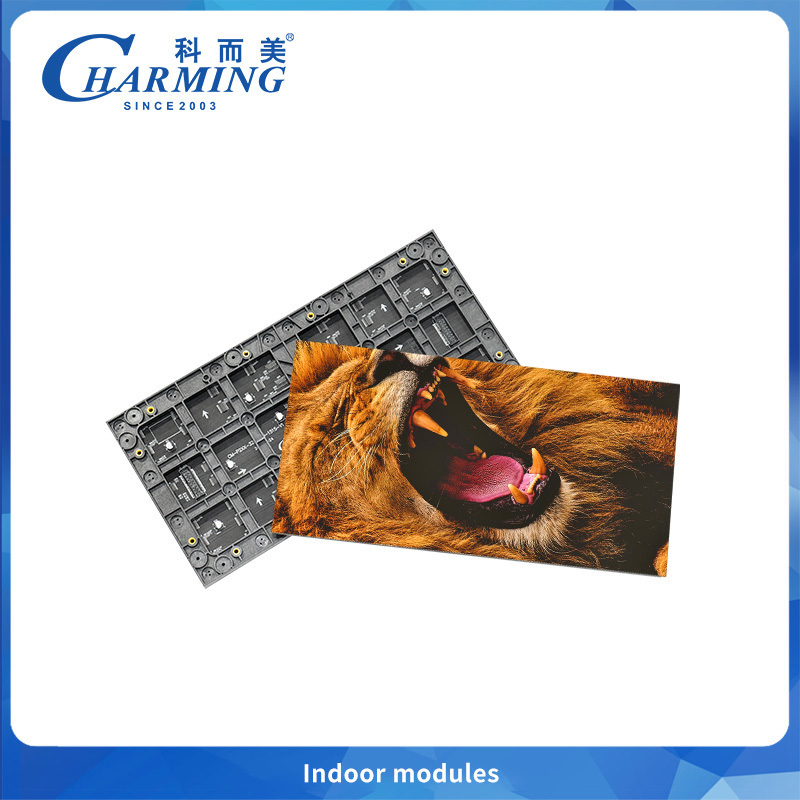

Hot Popular Fine Pitch P1.86 Indoor Led Module with Magnetic Design can East Install on the Wall
Подробная информация о продукте:
| Место происхождения: | Китай |
| Фирменное наименование: | Charming |
| Сертификация: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Номер модели: | P1.86 |
Оплата и доставка Условия:
| Количество мин заказа: | 50 шт |
|---|---|
| Цена: | Подлежит обсуждению |
| Упаковывая детали: | Кортон Carton, деревянный корпус, корпус полета |
| Время доставки: | 7 рабочих дней после оплаты |
| Условия оплаты: | L/C, T/T, Western Union, PayPal, Cash |
|
Подробная информация |
|||
| Режим сканирования: | 1/43 | Уровень защиты: | IP40 |
|---|---|---|---|
| Рабочая влажность: | 10-65%RH | Скорость обновления (Гц): | 3840 Гц |
| Светодиодный стандарт: | SMD 1515 | Плотность пикселей ((точка/м2): | 288906 |
| Метод обслуживания: | Обслуживание фронта | Технические характеристики: | 320x160 мм |
| Выделить: | P1.86 indoor LED module,magnetic LED video wall,fine pitch LED display |
||
Характер продукции
| Attribute | Value |
|---|---|
|
LED Specifications
|
320x160mm |
| Life Span |
>50,000 hours
|
|
Screen Brightness
|
≥600 CD/㎡
|
|
Cabinet Material
|
Aluminum Alloy
|
|
Pixel Density(Dot/㎡)
|
288906 |
| Module Max.Power |
19 W
|
|
Best Viewing Distance
|
＞2m
|
|
Protection Level
|
IP40 |
1. Low power consumption, high refresh rate.
2.Magnetic design, faster and easier installation.
3.Suitable for a variety of entertainment events venues.
1.Clear picture without flicker and distortion.No light leakage trouble.
2.The final products feature supreme quality and offers best outputs.
3.High refresh rate and gray scale ensures the picture quality remains seamless.
Supports one person fast installation to save 50% assembling and dissembling time and reduce labor cost
we will replace or amend all our goods for free if there is something wrong with them. We provide lifetime maintenance and charge only for the raw materials. We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory. We also provide the operation manual, software, test report and so on. Any associated CAD drawing on how to fix up the display and some other expert suggestion will be provided.
1.Smd led display module & cabinet is manufactured by using best quality material,we make the module and cabinet by ourselves.
2.Clear picture without flicker and distortion.No light leakage trouble.
3.The final products feature supreme quality and offers best outputs.
Supports 7680Hz ultra-high refresh rate, long-term viewing without glaring or fatigue
Magnetic design makes installation and disassembly more convenient
Suitable for diversified display scenarios such as corporate conference rooms, TV studios, command centers, commercial complexes.
