Small Pixel LED Display P1.86 Fine Pixel Pitch Indoor LED Video Display Wall
Подробная информация о продукте:
| Место происхождения: | Китай |
| Фирменное наименование: | Charmingled |
| Сертификация: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Номер модели: | P1.86 |
Оплата и доставка Условия:
| Количество мин заказа: | 20 шт |
|---|---|
| Цена: | Подлежит обсуждению |
| Упаковывая детали: | Кортон Carton, деревянный корпус, корпус полета |
| Время доставки: | 30 рабочих дней после оплаты |
| Условия оплаты: | LC,T/T,Western Union,Paypel,наличные деньги |
| Поставка способности: | 600 шт в неделю |
|
Подробная информация |
|||
| Рабочая температура: | -20 ~ 40 ℃ | Рабочая влажность: | 10% - 65% RH |
|---|---|---|---|
| Продолжительность жизни: | ≥50000 часов | Рабочее напряжение: | AC220v, 50/60Hz |
| Метод управления: | DVI | Уровень защиты: | IP40 |
| Выделить: | P1.86 fine pitch LED display,small indoor LED video wall,fine pixel pitch display wall |
||
Характер продукции

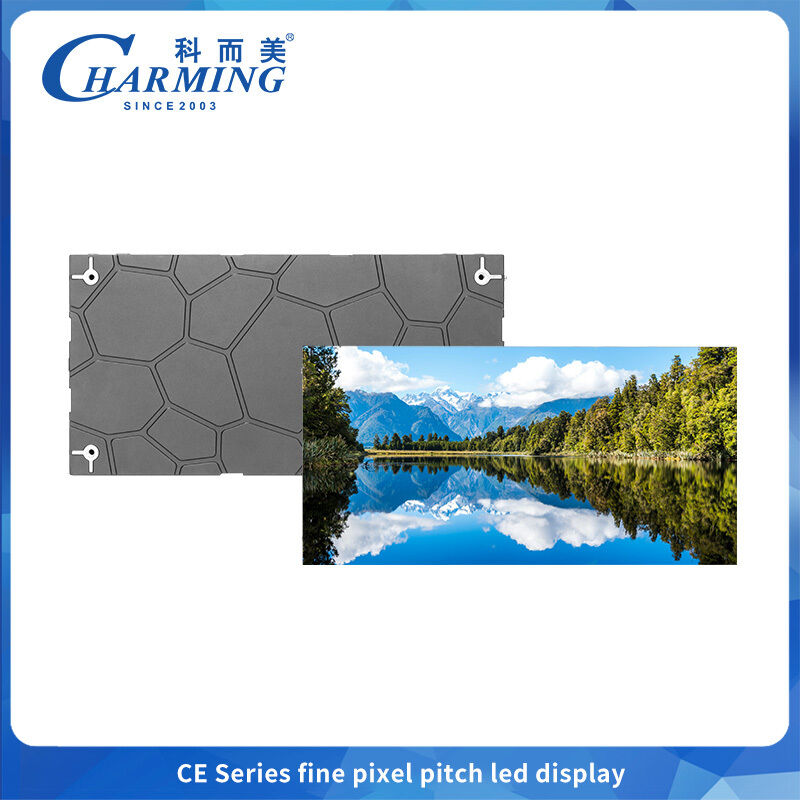

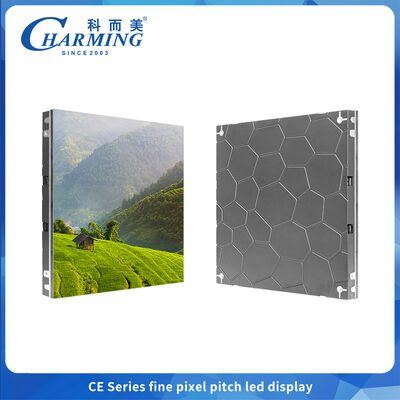

Small Pixel LED Display P1.86 Fine Pixel Pitch Indoor LED Video Display Wall
Product Advantages:
Our commercial aluminum alloy display cabinets are engineered for permanent indoor installations, combining ease of maintenance, space efficiency, and versatile compatibility. Key advantages include:
-
Efficient and Convenient Maintenance & Installation
• Front-Access Maintenance: Features a modular magnetic front-panel design, eliminating the need for rear access space.
• Space-Saving: Supports wall mounting to maximize valuable indoor floor area.
• Flexible Arrangement: Cabinets of varying sizes can be seamlessly combined to fit diverse wall layouts. -
Superior Compatibility & Adaptability
• Broad Compatibility: Each cabinet supports multiple 320x160 modules with different pixel pitches, enabling flexible procurement and inventory management.
• Stable Connectivity: Incorporates a flexible joining mechanism to ensure reliable splicing and seamless image continuity. -
Reliable Quality & Durability
• Durable Construction: Made from high-grade aluminum alloy for sturdy build quality, effective heat dissipation, and long-term fixed installation suitability.
Product Parameters
|
Type Number |
R1.86-320x480 |
R1.86-320x640 |
R1.86-640x480 |
R1.86-640x640 |
|
Dimension(mm) |
320x480x61mm |
320x640x61mm |
640x480x61mm |
640x640x61mm |
|
Cabinet Weight(kg) |
3.5kg |
4.5kg |
6.1kg |
8kg |
|
Refresh rate(Hz) |
7680Hz |
7680Hz |
7680Hz |
7680Hz |
|
Brightness(CD/m²) |
600CD/m² |
600CD/m² |
600CD/m² |
600CD/m² |
|
View angle |
140° |
140° |
140° |
140° |
|
Maintenance Method |
Front maintenance |
Front maintenance |
Front maintenance |
Front maintenance |
Company Introduction
Charming Co., Ltd. has long been at the forefront of technological innovation in the global entertainment lighting and LED solutions industry.
A true pioneer, we launched the world’s first entertainment-dedicated LED display in 2003—a landmark achievement that continues to shape the standards for LED performance in dynamic visual environments. Today, Charming is recognized as a leading brand in China for customer satisfaction across entertainment lighting and LED displays.
Our commitment to innovation is reflected in a portfolio of nearly 100 patents and backed by major international certifications such as ISO9001, CE, CCC, CB, ROHS, and SASO.
Driven by our philosophy, “Charming Achieves Brilliance,” we operate a fully automated, globally compliant LED display production line. From our modern manufacturing facility spanning more than 10,000 square meters, we have delivered premium products and services to clients in over 150 countries and regions for more than twenty years.
Quality Assurance & Customer Support
✅ 2-Year Comprehensive Warranty – Enjoy free repairs or replacements for any defects in displays, modules, or components.
✅ Lifetime Maintenance Support – After the warranty period, only parts and materials are charged.
✅ Complimentary Technical Training – Receive practical operation and maintenance training at our facility.
✅ Complete Documentation Package – Includes user manuals, software, test reports, CAD drawings, and professional guidance.
Your success matters to us — let's create excellence together!
What We Provide
-
Free technical training at our factory, covering both operation and maintenance.
-
Full documentation: operation manuals, software, test reports, and more.
-
Various certifications available upon request, including CE, UL, and others.
